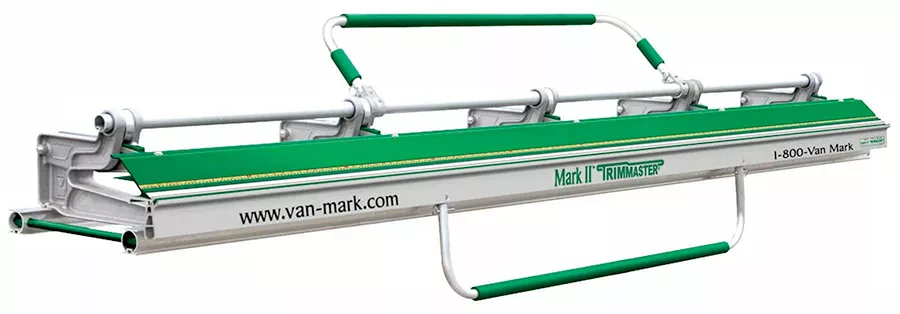

TrimMaster Mark II
Van Mark
The TrimMaster Mark II is Van Mark’s most popular portable metal brake for good reason. Synonymous with durability and value, the Mark II TrimMaster features a cam-locking design that self-adjusts to the material you are working with, requires no adjustments, and virtually no maintenance. Designed for light gauge sheet metal work, the TrimMaster MK II is easy to work with but can handle the rigors of job site use. Van Mark also offers other brakes with the ability to bend up to 24-gauge painted steel and brakes in various lengths to meet different needs. For more information, visit van-mark.com.
Thermally Broken Smoke Vent
BILCO
BILCO’s Thermally Broken Automatic Smoke Vent provides energy efficiency while offering the standard benefits of passive fire protection. The smoke vents include R-20+ insulation and a frame and cover design that minimizes heat transfer between metal surfaces. Features include a Thermolatch® positive hold/release mechanism that ensures reliable operation when a fire occurs. Powerful lifting mechanisms open the covers in windy and snowy conditions. Heavy-duty shock absorbers eliminate the possibility of operational, roofing or structural damage. Smoke vents help bring a fire under control by removing smoke, heat and gases from a burning building. The vents are UL-listed and are available in standard and custom sizes. Visit www.bilco.com for more information.
Master Flow Pivot Pipe Boot Flashing
GAF
The GAF Master Flow Pivot Pipe Boot Flashing is a premium upgrade for “commodity” pipe boots or collars. The all-metal construction fully encapsulates plumbing pipes so that no exposed gaskets, seals, collars, or caulk can degrade, causing leaks and homeowner callbacks. The new Master Flow Pivot Pipe Boot Flashing is designed and tested to pass the 110 mph wind-driven rain test per TAS-100(A) and UL 2218 Class 4 impact resistance test.* Featuring a “ball/socket” component for simple rooftop pitch adjustment, the Master Flow Pivot Pipe Boot Flashing is available in four sizes and four colors — Black, Brown, Weathered Wood, and Gray — for a streamlined look on the roof. It's warrantied for the life of the adjacent roof/shingles cladding (up to 50 years*±) and eligible for enhanced warranty coverage when installed by a contractor certified by GAF in connection with a qualifying roofing system.˚˚
*Testing performed under controlled laboratory conditions. Hail damage is not covered under GAF limited warranties.
*±See GAF Master Flow™ Pivot™ Pipe Boot Flashing Limited Warranty for complete coverage and restrictions.
˚˚See GAF System Plus, Silver Pledge™, and Golden Pledge® Limited Warranties for complete coverage and restrictions.
Learn more at gaf.com/pivot.
SoffitGuard
DCI Products
DCI Products introduces a revolutionary product to lower homeowner’s insurance claims! The easy-to-install SoffitGuard is a base flashing for eaves with gutters attached. When gutters overflow, water gets behind the drip edge, causing water infiltration into the Soffit/Fascia areas of the home and the living spaces. SoffitGuard Protects against winter and summer storms. The construction detail below shows how vulnerable the fascia and roof deck intersections are when gutters are installed. For more information, visit soffitguard.com or call 610-622-4455.
GRipperFix
S-5!
It’s often necessary to attach rooftop equipment to your metal roof. However, improper installation compromises the equipment and the roof's integrity. Long-term solutions demand long-lasting, durable attachment methods. S-5!’s GRipperFix utility mounting system easily mounts almost anything to metal roofs without damaging the roof. For installing HVAC, light fixtures, conduit, communication equipment, and service walkways, GRipperFix provides a secure and dependable attachment solution that preserves the roof's integrity and avoids destructive corrosion. Quick and simple to install; lasts the life of the roof, maintains roof warranties and is less expensive than alternative methods. For more information, visit s-5.com.
Permanent Adjustable Standing Seam Roof Anchor
Guardian
The Adjustable Standing Seam Roof Anchor is designed for fall protection systems on new or existing standing seam roofs. It features twin mounting bars using eight industry-standard S-5 clamps for incredibly secure attachment to standing seams. The clamps will not penetrate the panels or seams, ensuring the roof integrity is not compromised. The Guardian 53221 Anchor can be used with a Guardian Fall Protection 2-person or 4-person Rope HLL System. The product is available through Big Rock Supply at bigrocksupply.com.
Tested Flashing
Sheet Metal Supply
Sheet Metal Supply offers standard ANSI/SPRI/FM-4435/ES-1 tested flashing parts. The company can also quickly test through a third party and then produce tested perimeters with unique designs and materials or otherwise not covered by an existing tested design. Most standard tests are performed with steel or aluminum, but zinc, copper, stainless steel and even more unique metals can be tested to meet ES-1 perimeter system standards. The ANSI/SPRI/FM-4435/ES-1 perimeter system test produces results that can be used to calculate wind performance. Rated/tested perimeter systems delivered with instructions unique to the design, including proper fastener, pre-punched fastener holes for appropriate spacing and stagger, etc. For more information, visit sheetmetalsupplyltd.com.
The Throne
QuickBOLT
QuickBOLT offers a wide range of solar mounts for every roof type. Their newest solution for standing seam metal roofs is a stainlessness-steel mount with an integrated L-Foot and set screws for more robust mounting. The screws come pre-assembled with the L-Foot. The mount includes a grip plate with cross-knurling that provides extra grip, enhances pull-out resistance and prevents the set screws from damaging the roof.
The Throne can be purchased directly through QuickBOLT on its website or through local distributors. Reach out to your local QuickBOLT rep for more info, or visit quickbolt.com.
